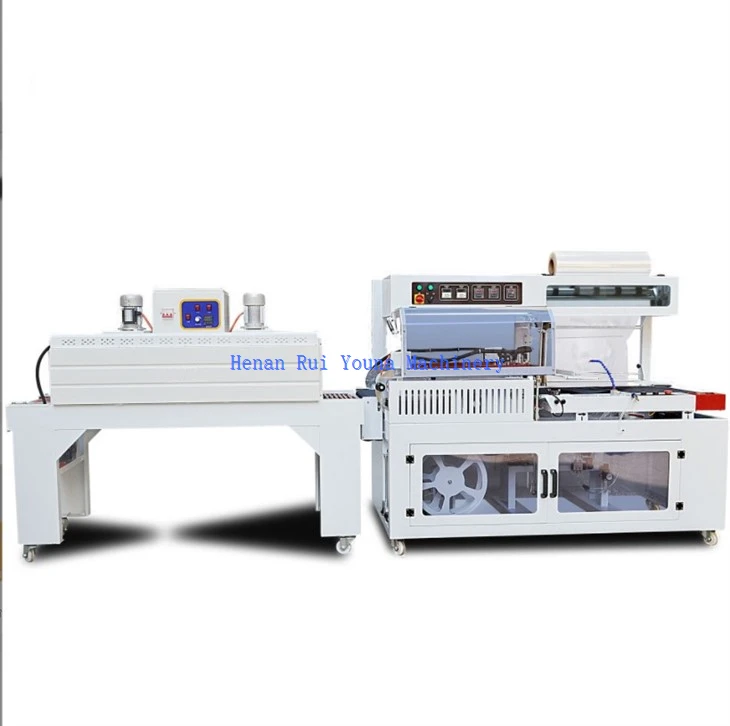

L Bar Sealer Shrink Wrapping Tshuab
L bar sealer shrink wrapping tshuab yog tsim rau shrink films xws li PVC, POF, thiab lwm yam. Nws yog dav siv hauv cov khoom noj, dej haus, tshuaj, tshuaj pleev ib ce, khoom ua si, kho vajtse thiab lwm yam lag luam.
- Kev xa khoom sai
- Kev Nyab Xeeb Zoo
- 7*12 Kev Pabcuam Cov Neeg Siv Khoom
Khoom Taw qhia
L bar sealer shrink wrapping tshuab
L bar sealer shrink wrapping tshuab yog tsim rau ntim ntim ntim hauv ntawv sau, khoom noj khoom haus, tshuaj pleev ib ce, khw muag tshuaj, kho vajtse thiab lwm yam lag luam. Ntshuam PLC tsis siv neeg cov kev pab cuam tswj tau txais yuav, uas yooj yim rau kev khiav lag luam thiab muaj kev tiv thaiv kev nyab xeeb thiab lub tswb ua haujlwm, yog li tiv thaiv cov pob khoom los ntawm kev ua yuam kev. Nruab nrog cov kab rov tav thiab ntsug photoelectric kuaj pom, nws yooj yim los hloov thiab xaiv. Nws kuj muaj qhov ua haujlwm ze thiab tsim tshwj xeeb rau kev ntim khoom me me. Lub tshuab tag nrho tuaj yeem paub txog kev ua haujlwm tsis muaj kev sib txuas nrog cov kab ntau lawm.
L bar sealer shrink wrapping tshuab
1. Sealing muaj zog thiab kev ua tau zoo dua ntawm kev siv hluav taws xob-tshwj xeeb ruaj ruaj alloyed sealing riam nrog cov tsho tiv thaiv teflon
2. Esay rau kev khiav lag luam -tsuas yog kho cov ntim dav thiab qhov siab ntawm tes log yam tsis hloov cov pwm thiab qhov chaw thaum ntim loj hloov. packing ntev tuaj yeem kuaj pom los ntawm lub sensor txiav.
3. Cov kab ntau lawm-Cov khoom sib txawv nrog ntau qhov sib txawv tuaj yeem ntim ua ke raws li pob khoom txhawb nqa.
4. Cov khoom tseem ceeb zoo -adopt omron hom khoom xws li kub tswj, timer, relay, hloov, thiab sensor.
5. Tswb rau seem zaj duab xis so los yog tag nrho.
6. Ib khub ntawm photoelectric hloov hauv ntsug rau cov khoom nyias.
7. yeem kaw conveyor rau cov khoom me me.
8. Kev xaiv sensor rau cov khoom pob tshab.
9. Pom qhov rais nyob rau hauv shrink qhov.
|
Qauv |
qw 4518 |
DSC4525L |
|
Max packing loj (mm) |
L ∞, W+2H Tsawg dua lossis sib npaug rau 450, H Tsawg dua lossis sib npaug li 150mm |
Shrink qhov: L1500 * W450 * H250 |
|
Max sealing loj (mm) |
W380 |
/ |
|
Lub zog (KW) |
1.40 |
9 |
|
Muaj peev xwm |
0-21 pcs/min |
0-16 m/min |
|
Qhov hluav taws xob |
220V 50/60HZ |
380V 50/60HZ |
|
Sealing kub |
180 degree -250 degree nyob ntawm thickness ntawm zaj duab xis thiab ib puag ncig kub |
|
|
Thickness ntawm zaj duab xis (mm) |
0.015-0.10 |
|
|
Cua siab (Kg / cm2) |
5 |
|
|
Cov khoom ntim |
POV PVC |
|
|
Tshuab hnyav (kg) |
340 |
220 |
|
Tshuab loj (mm) |
L1700×W950×H1580 |
L1800×W703×H1300 |
Qhov no L bar sealer shrink wrapping tshuab yog tsim rau shrink films xws li POF, PVC, PP, thiab lwm yam.
FAQ:
1. Yuav ua li cas txog koj Shrink wrapping tshuab zoo?
Peb lub Hoobkas muaj 16 xyoo kev ua haujlwm hauv tshuab; tag nrho peb cov tshuab twb tau txais ISO9001, SGS
daim ntawv pov thawj, CE daim ntawv pov thawj; twb exported rau ntau lub teb chaws thiab cheeb tsam; twb tau txais cov neeg siv khoom lub koob npe nrov.
2. Ua li cas rau kojShrink wrapping tshuab?
Txhua lub sij hawm peb yuav ua kom zoo raws li lub Hoobkas lub neej, txawm tus nqi zoo los tsis yog rau peb. Qhov zoo yog thawj zaug, ntawm lub hauv paus zoo tshaj plaws, Nco ntsoov tias koj yuav tau txais tus nqi tsim nyog thiab txaus siab!
3.Koj puas tuaj yeem xa kuv daim vis dis aus los qhia tias Shrink wrapping tshuab ua haujlwm li cas?
Muaj tseeb tiag, peb tau ua yeeb yaj kiab ntawm txhua lub tshuab thiab xa lawv los ntawm peb qhov chaw nyob.Pls. tiv tauj peb, peb yuav xa koj lub tshuab video.
Cim npe nrov: L bar sealer shrink wrapping tshuab, Suav teb l bar sealer shrink wrapping tshuab lwm tus neeg, manufacturers, hoobkas
