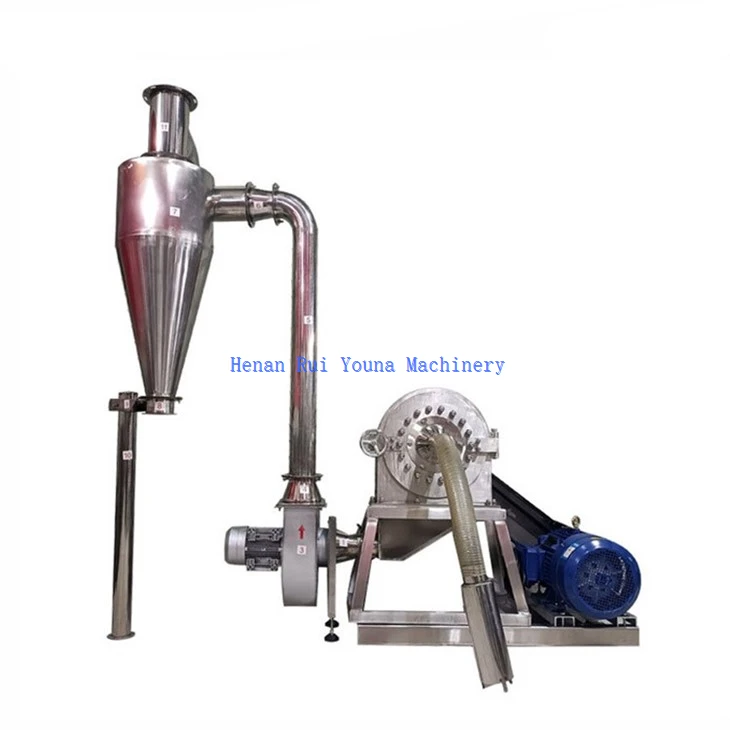

Hmoov sib tsoo tshuab





Hmoov sib tsoo tshuab



Stainless hlau claw crusher yog dav siv nyob rau hauv cov khoom noj, tshuaj, tsis yog -hlau mining thiab lwm yam lag luam, haum rau crushing qhuav brittle cov ntaub ntawv. Lub tshuab muaj cov qauv yooj yim, muaj zog, ruaj khov ua haujlwm, ceev ceev thiab cov khoom siv crushing, thiab cov nyhuv zoo. Lub tshuab yog ua los ntawm cov khoom siv hlau tsis muaj steel, thiab sab hauv ntawm lub plhaub yog lub tshuab precision kom ua tiav cov nyhuv ntawm du thiab yooj yim los ntxuav, uas hloov cov phenomenon ntawm ntxhib puab phab ntsa ntawm cov crusher zoo tib yam, yooj yim rau sau hmoov thiab nyuaj los ntxuav, thiaj li hais tias cov khoom noj khoom haus, tshuaj, tshuaj lom neeg kev lag luam thiab thiaj li nyob rau ntau tau raws li lub teb chaws tus qauv. Lub tshuab muaj qhov zoo ntawm cov qauv yooj yim, yooj yim disassembly thiab sib dhos ntawm crushing chamber, yooj yim tu, thiab hloov claw tom qab hnav. Kev ua haujlwm du, tsis tshua muaj suab nrov, tsis tshua muaj kev vibration. Kev ua haujlwm yooj yim, hloov lub vijtsam tuaj yeem tswj qhov loj ntawm crushing particle loj.

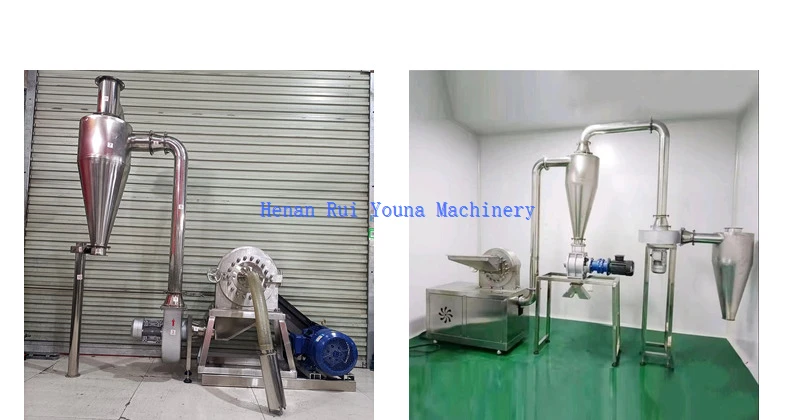

Hmoov sib tsoo tshuab

Khoom Specification

Qauv	200 hom	300 typ	400 typ	500 yam	600 typ	800 yam	1000 yam
Hauv qab lub thawv hom: ntev * dav * qhov siab (mm)	520*420*970	920*530*1235	1250*850*1350	1300*920*1390	1450*930*1480	1750*1150*1760	2000*1260*1950
Yooj yim bracket hom ntev * dav * qhov siab (mm)	450*420*970	870*530*1235	1200*850*1260	1400*920*1290	1350*930*1380	1550*1150*1650	1900*1260*1850
Spindle ceev (revolutions ib feeb)	7000	5700	4500	3900	3200	2800	1800
Rotor ua haujlwm txoj kab uas hla (mm)	160	230	320	370	450	600	800
Qhov sib txawv zog (KW)	1.5-2.2	3-4	5.5-7.5	7.5-11	11-15	18.5-22	22-30
Qhov hnyav ntawm lub thawv hauv qab hom (Kg)	85	120	196	270	315	550	750
Qhov hnyav (Kg) ntawm hom bracket yooj yim	70	110	180	250	320	522	700
Muaj peev xwm (Kg / h)	10-120	30-200	50-300	70-400	100-500	500-1500	800-2000
Pub particle loj (mm)	Tsawg dua los yog sib npaug li 12	Tsawg dua los yog sib npaug li 12	Tsawg dua los yog sib npaug li 12	Tsawg dua los yog sib npaug li 12	Tsawg dua los yog sib npaug li 12	Tsawg dua los yog sib npaug li 12	Tsawg dua los yog sib npaug li 12
Sib tsoo particle loj (mesh)	10-120	10-120	10-120	10-120	10-120	10-120	10-120
Xaiv cov bearings	6205	6207	6207	6309	6309	6312	6312

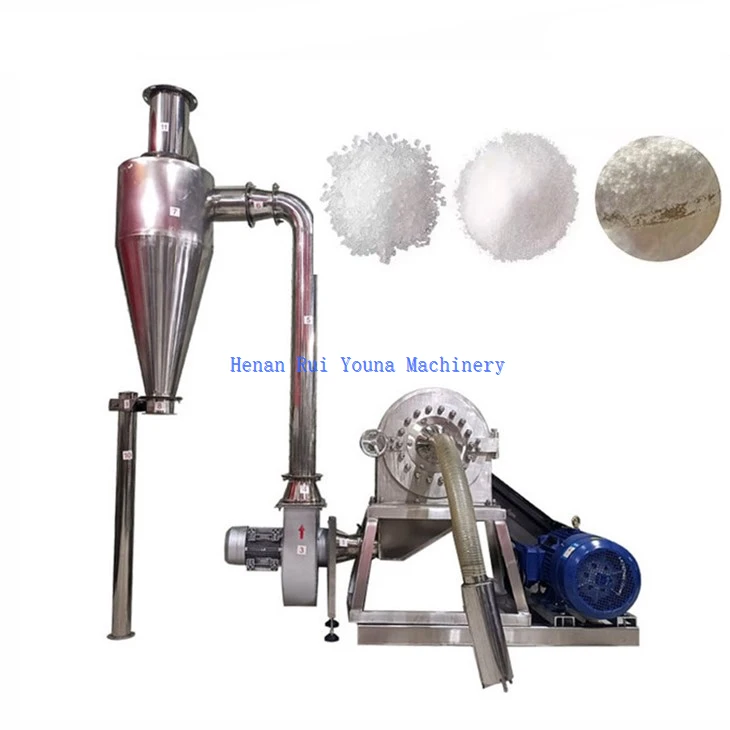

Hmoov sib tsoo tshuab
